Patented Product
(The first unit in Asia)
PARAMETER
| Glass protetive film Applicntor |
| NO. | Technical Requirements | Parameter | Notes |
| 1 | Model | LJGYJ2530/2535/2540 | |
| 2 | Dimension | 8500×2100×3950(L×W×H) | |
| 3 | Voltage | 380V 50HZ | |
| 4 | Total power | 24KW | |
| 5 | Air pressure | 0.5-0.8MPa | |
| 6 | Min.IG size | 450×350mm(L×H) | |
| 7 | Max.IG size | 3000×2500mm(L×H) | |
| 8 | Min.IG thickness | 15mm | |
| 9 | Max.IG thickness | 60mm | |
| 10 | Max.IG weight | 600KG | |
| 11 | Film | Single-sided/Double-sided film | |
| 12 | Bottom glass edge reservation | ≧15mm | Manual input |
| 13 | Other glass edge reservation | 5-50mm | Manual input |
| 14 | Automatic adjustment of IG dimension | Adding length and height adjustment | Or manual input |
| 15 | Automatic adjustment of IG thickness | Adding thickness adjustment | Or manual input |
| 16 | Conveyor speed | 2-10m/min | |
| 17 | Conveyor roll height | 520mm | |
| 18 | The roll heights of the first group | 300-400mm | |
| 19 | The roll heights of the second group | 600-700mm | |
| 20 | Inner diameter of film roll | 76mm | |
| 21 | Max.outer diameter of film roll | 300mm | |
| 22 | Film roll | IG protective film | Some manufacturers'film not suitable |
| 23 | Film thickness | 0.03-0.08mm | |
| 24 | PLC+servo | Tian chuan | |
PERFORMANCE
1.Intelligent and Efficient Operation---Powered by 18 high-precision servo motors and an advanced 3D trajectory control system, the applicator seamlessly adapts to glass thicknesses ranging from 15 to 60 mm. It features automatic size detection and intelligent film roll switching to ensure smooth, uninterrupted production.
2.Labor Cost Reduction---With fully automated processes and no need for manual film peeling, the system significantly reduces labor dependency.
3.Enhanced Production Efficiency---The intelligent film-switching mechanism eliminates downtime caused by manual roll changes, saving 10 to 20 minutes per batch. Capable of processing ≥200㎡ per shift, the machine achieves an equipment utilization rate exceeding 95%.
4.Superior Film Utilization---The Lijiang applicator achieves a film usage rate of over 95%, significantly higher than the 80‒90% of traditional systems, thus saving substantial materials and improving cost-efficiency.
5.Customization Capability----Supports on-demand logo printing on transparent film, providing flexible customization options while significantly reducing the cost of specialized film materials.
|
|

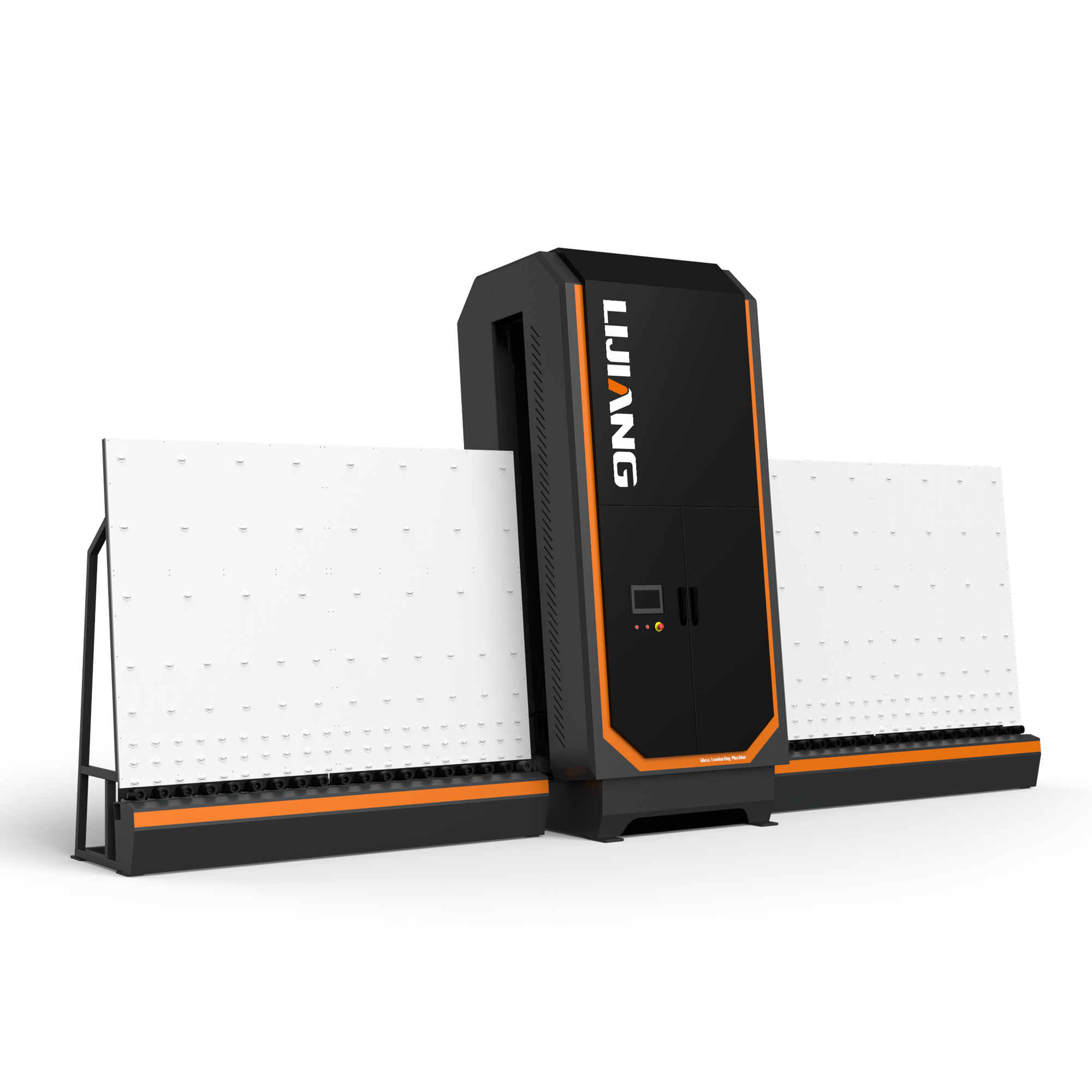

GLASS PROTECTIVE FILM APPLICATOR (Patented Product)(The first unit in Asia) Images
|
