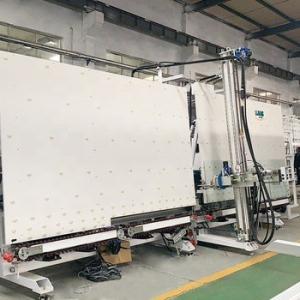

Full Automatic and high-efficienc Silicon Sealing Robot for Insulating Glass Processing
This type of machine is a full automatic and high-efficienc sealing robot for insulating glass processing. Automatically measure glass size, glue depth and glue speed with linear adjustment. Single-function parts are equipped with manual functions, easy adjustment.Can coating more than 8 kinds of shaped glass,include Semicircle. Trapezoidal. Parallelogram. Circular. Polygon, etc.
Main Feature
* Can coat many shaped glass(triangle glass,hexagon glass,trapezoidal glass,arc glass,train glass and so on) , stepped glass(option)
* Can coat triple glass by one time
* Fast reacting and volume controlled dosing system for IG glass, 2-component sealant
* The glass edge and corner is full without air bubbles, smooth surface, no need to pare the corner
* Synchronous belt transmission to make the glass being transferred smoothly with accurate positioning
* Electric and compressed air switch valve:Ensure electrical automatic switch, stable performance and uniform coating.
* Japan YASKAWA servo motor and CPU,Siemens low-voltage electrical appliances.
* Using two sets of independent sealant supply system( including the mixing device), two kinds of sealants switch in one-key operation easily.
Technical data
| Max. glass size | 2500*4000mm (Optional) |
| Min. glass size | 300*300mm |
| Glass thickness | 12-50mm |
| Working speed | 5-40m/min |
| Air pressure | ≥0.6MPa |
| Squeeze pressure | 32MPa |
| Voltage power | 380V 12kw |
| Overall dimension | 11000*2000
|
Big drum silicone sealant for Insulating glass
| Product Name | Chinese factory insulating glass two component silicone sealant |
| Type | Two part silicone sealant |
| Mixed Specific Gravity | 1.38-1.39g/ml |
| The mixing ratio | A:B10:1 |
| Density | 1.5(g/cm3) |
| Usage | Construction, insulating glass/ hollow glass |
| Material | silicone |
| packaging | drum or customized |
| Color | black and white |
| Port | Qingdao |
| Product Keywords | insulating glasstwocomponentsilicone sealant,twocomponentbig drum neutralsiliconesealants190L 19L,insulating glasstwocomponentneutralsiliconesealant |
With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.
