Double Glazing Glass Automatic Aluminum Spacers Bending Machine
Insulating glass it is made by 2pcs or more float glasses which filled with desiccant of Argon gas with Aluminum frame.Primary seal(butyl)between insulating glass and Aliminum frame, secondry seal(polysulfide or structure). the insulating glass will be effectively protect radiation when coated Low-E film.
Features of Automatic Spacer Bending Machine
• 4 or 12groups of spacer racks
• Siemens 1200 PLC control system with fast working speed
• Automatically avoid the pins while bending and cutting
• Bend spacer frames continuously
• Automatically cut and feed aluminum spacers
• Aluminum spacers are available in sizes of 6A-27A
• Different bending tools for different sizes of spacers
• Pause and Reset device for handling equipment failures
• Bend aluminum spacer, smooth stainless steel, warm spacer
• USB input function, read the excel format file directly
Detail of Aluminum spacer bending machine
1.German siemens plc control system,touch screen interface.
2.Four or Twelve different spacer size storage units can choose
3.Heavy duty connectors ,convenience and safety for installation and debugging

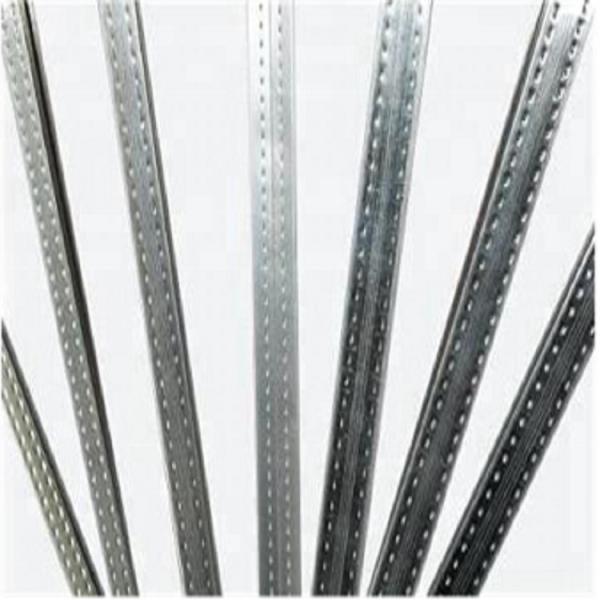

4. Aluminum spacers are available in different specifications and sizes
5.Support continuous bending , it automatically avoid spacer -connection while bending and cutting
6.The special machine hand device is used to bend big spacer frame
7.Automatic spacer bending machine can bend aluminum spacer /technoform /Alupro /swisspacer/ stainless steel /thermix (optional)
8.USB input function ,it can read the excel data directly
9.Spare parts of all machine have ID code ,convenient for after-sale service
After sales service from LIJIANG GLASS for automatic aluminum spacer bending machine
Ⅰ.Warranty : 1 year
Wearing parts and equipment damage caused by customer's reasons are not included in the free warranty.
Ⅱ. LIJIANG has the own system for after sale service, which including three parts.
1. When LIJIANG equipment arrive customer’s factory, LIJIANG can send engineers to customer’s factory for installation, adjustment and personnel train with free commission. However, customers should bear the engineer’s round-trip air tickets and accommodation.
2.Beyond the warranty period, if LIJIANG equipment has problem, LIJIANG will provide timely technology support online firstly. However, if customers request LIJIANG engineer, the customer should bear the engineer’s round-trip air tickets and accommodation, also the customer should pay LIJIANG 150 dollars per day as service commission.
3. During the warranty year, if there is problem with LIJIANG equipment, LIJIANG will provide timely technology support online firstly. However, if engineer has to go to customer’s factory repair machines, the customer should bear the round-trip air tickets and accommodation. Please notes, if there is damaged spare because of LIJIANG, LIJIANG will prepare them in advance (Except wearing parts).
Note: Before LIJIANG engineers go to customer’s factory, the customer should send the air tickets and hotel details in advance. LIJIANG will arrange the engineer's itinerary and maintenance items ASAP.
Optional functions
• Connect to ERP system
• Drill holes
• Printing code
• Printing label sticker
• Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools
Tachnical Data of spacer bending machine
| Max. bending size | 2000mm*2000mm |
| Min. bending size | 250mm*180mm |
| Aluminum spacer width | 6A - 27A |
| Spacers racks | 4 Racks |
| Spacer size error | ±0.5mm |
| Angle error | ±1° |
| Processing speed | < 25s (1000mm*1000mm) |
| Air supply | ≥0.65MPa |
| Voltage | 380V50Hz 3P |
| Total power | 2.5KW |
| Dimension 尺寸 | 10500mm*2200mm*2600mm |
